計算機模塊也稱為模塊化電腦（Computer-On-Module, COM）是一種可以集成到電子系統中的設備。它是一個緊湊的模塊，包含了計算機系統所需的所有組件，如處理器、內存和輸入/輸出接口。COM可以插入定制設計的載板，提供必要的電源和連接性，以與系統中的其他設備交互。
使用COM的主要優點之一是其靈活性和易于集成性。開發者可以快速、輕松地將計算能力添加到他們的電子系統中，而無需設計和構建定制的主板。這節省了時間和資源，同時也簡化了設計過程。
COM常用于嵌入式系統，如工業自動化、醫療設備、交通系統和軍事裝備。它們也用于其他應用，包括信息亭、銷售點終端和物聯網（IoT）設備。
瑞傳科技為所有工業應用提供模塊化電腦解決方案。請立即瀏覽我們的計算機模塊板或聯系我們?yōu)槟?wù)。
Portwell’s boards provide a dependable, powerful, and economic basis to meet your carrier board design. We offer one-stop shopping, so you can get to the markets faster with complete assemblies, including housings, and keep your products available for many years with life cycle management. You can take a big step forward into a successful future with our proactive project management and ISO 9001:2000 certificate.

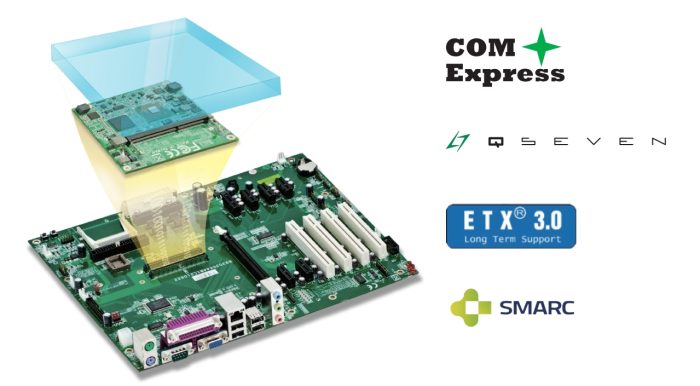

The CPU module delivers the core functionality while all application-specific features are designed into the baseboard creating a semi-custom embedded PC solution. If you want to enable faster time-to-market and cost-effective customization alternatives, COM (Computer-On-Module) is the answer. COMs are highly integrated component SBCs that support system expansion and application-specific customizations and improve form, fit, and function, minimizing current and future design risks. They also provide lower product lifecycle costs through module scalability and interchangeability.
COM Express defines standardized form factors and pin-outs for Computer-on-Modules. The standard includes the mini form factor (84 x 55mm), the compact form factor (95 x 95mm), and the primary form factor (125 x 95mm). Digital Display Interfaces (DisplayPort, HDMI) and super-fast USB 3.0 were recently added to the pin-out definitions for COM Express modules to serve industry requirements.

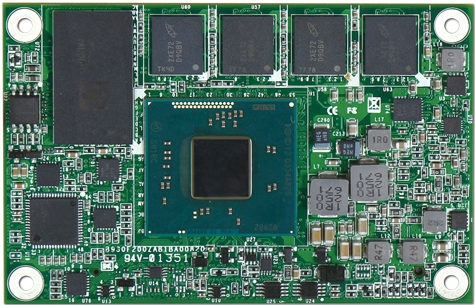

COM-Express? Mini: COMe Mini form factor (84 x 55mm) and Type 10 pin-out.
COM Express? Compact: COMe Compact form factor (95 x 95mm) and Types 7 and Type 6 pin-out.

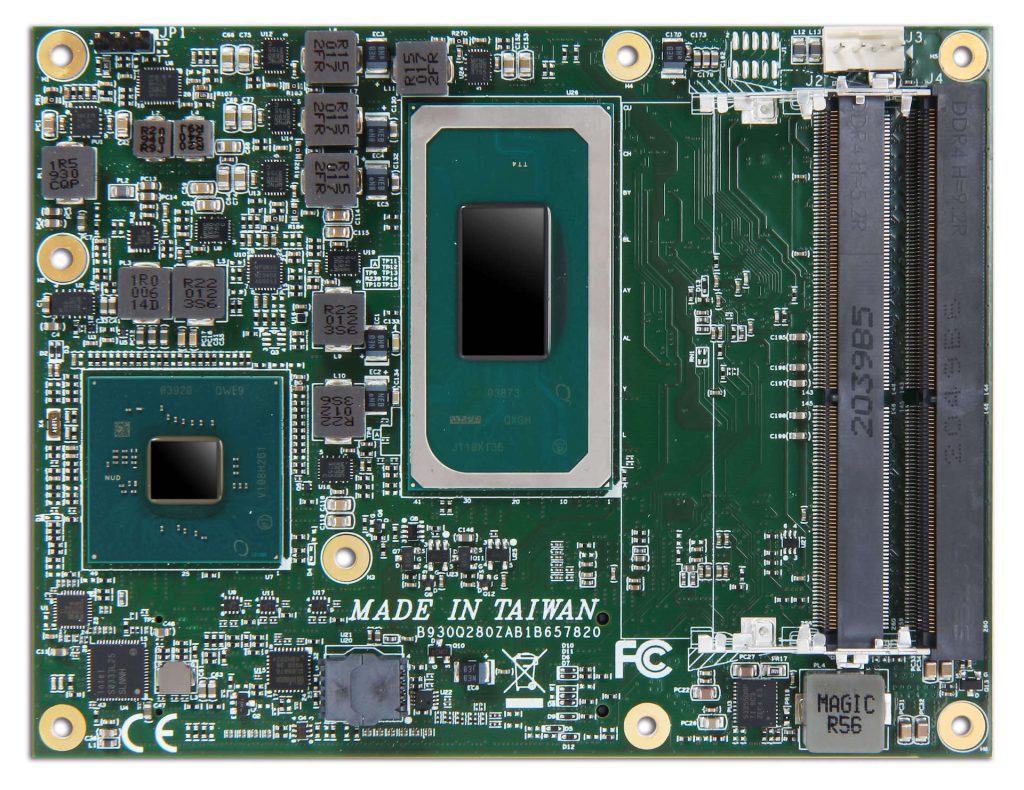

COM Express? Basic: COMe basic size form factor (125 x 95mm) and Types 7 and Type 6 pin-out.
Qseven Module (70 x 70mm) size of the Computer-on-Modules.
Qseven modules, developed by the Standardization Group for Embedded Technologies (SGET), offer system developers low-power, energy-efficient solutions perfect for applications where space is a constraint. With footprints as small as 70 mm x 70 mm, Qseven modules are the ideal choice for embedded applications that require small form-factor computing.

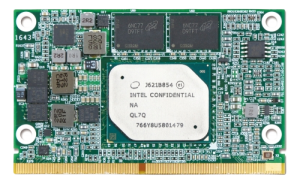

SMARC Module (82 x 50mm/82 x 80mm) size of the Computer-on-Modules.
The SMARC (“Smart Mobility ARChitecture”) is a versatile small form factor computer Module definition targeting applications that require low power, low costs, and high performance. Module sizes are 82mm x 50mm and 82mm x 80mm with 314 edge fingers that mate with a low profile 314 pins 0.5mm pitch right angle connector.

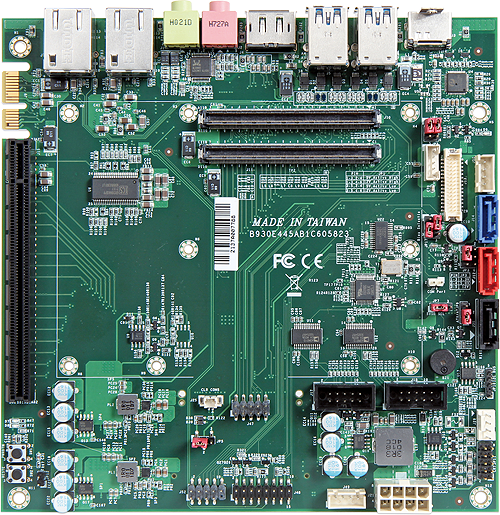

Portwell’s COM-Express?, Qseven, and SMARC development (carrier) boards help customers evaluate and establish customer application programs before starting the carrier board design. It can be used as a reference design to reduce customers’ design effort and assess performance and computing reliability early.
Portwell provides remote technology to oversee the world. Portwell Distributed Intelligence is essential for increasing capabilities – Remote diagnostic and repair, helping to increase equipment availability. Software reliability by isolating application code and helping to prevent dangerous interactions and security by preventing any node from executing malicious software.
The smart grid allows utility operators to transform their electrical networks with energy demand growth. Using Portwell technologies, which offer higher scalability, performance, energy efficiency, and serviceability, next-generation equipment can provide utilities with improved energy management and lower operating costs.
Each element on the grid will demand a particular set of features; however, most parts can often be designed using a single-processor architecture with exceptional scalability, upgradeability, and flexibility.
The smart grid allows utility operators to transform their electrical networks with energy demand growth. Using Portwell technologies, which offer higher scalability, performance, energy efficiency, and serviceability, next-generation equipment can provide utilities with improved energy management and lower operating costs.
* Specifications are subject to change without notice.
